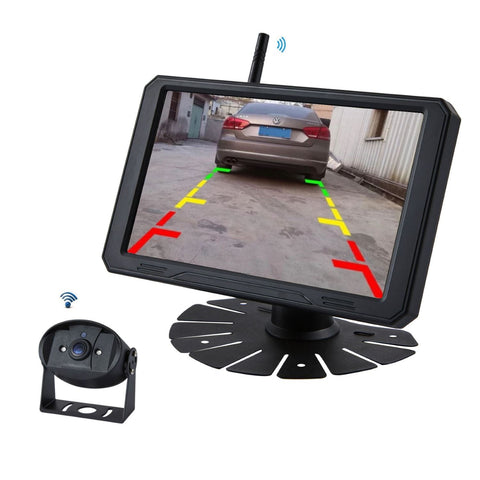

Reversing Cam Truck Wireless + 7-inch Screen

  • $29900 $299.00
  • Free NZ Wide Shipping


This complete reversing camera kit is designed for trucks and heavy vehicles and is a great assistance for backing up and reverse parking. With the dash or windscreen-mounted 7-inch LCD monitor wirelessly connected to the camera unit, the picture comes up instantly once reverse gear is engaged making manoeuvring into tight spots much easier.

The back up camera has an outstanding 170° diagonal viewing angle, compatible with both the 12V and 24V electric systems and is designed to be hardwired to reversing light allowing the system to activate automatically when reversing. As for the screen, the high-quality LCD monitor does a great job displaying the camera picture both day and night. The control buttons on the back of the monitor can be used for changing settings (such as enabling parking lines).

While both the LCD monitor and the camera unit need to be wired to power, there is no cable connection between them thanks to the built-in 2.4 GHz transceiver for wireless picture transfer. All in all, the installation process is rather straightforward and easier than most other reversing camera systems on the market.

Key Features

  • 7-inch high-definition TFT LCD monitor with anti-glare shade.
  • The wide 140° horizontal and 170° diagonal viewing angle.
  • IP68 waterproof and dustproof reversing camera.
  • Automatic operation when reverse gear is engaged.
  • Compact dimensions and high build quality.
  • 12-month warranty.


Screen Diagonal 7-inch
Viewing Angle Horizontal: 140°
Diagonal: 170°
Transmission Distance up to 100 meters (open area)
Frequency 2.4 GHz
Resolution 800*480
Waterproof Rating IP68
Power Supply DC 9V-28V
Operation Temperature -20 °C to +70 °C
Operation Temperature -30 °C to +80 °C
Certificates CE, FCC, RoHS

Package Contents

  • Reversing Camera Unit
  • 7-inch Display
  • Power Cable
  • Display Cigarette Lighter Power Cable
  • Antennas (2 pcs)
  • Mounting Bracket
  • Mounting Bracket Adhesive
  • Converter
  • Wire Taps (2 pcs)
  • Screws (4 pcs)

Installation Walk-through

The following video is a walk-through of an installation of a similar wireless reversing camera system.

Auckland-Wide Installation Service

If you'd like this reversing camera professionally fitted and hardwired into your car, please consider our mobile camera installation service available in the Auckland region or make an enquiry for a quote for hardwiring installation.

Shipping and Taxes

Free overnight NZ Post tracked courier shipping within New Zealand from for all the orders above $200! (rural approximately 3 days)
