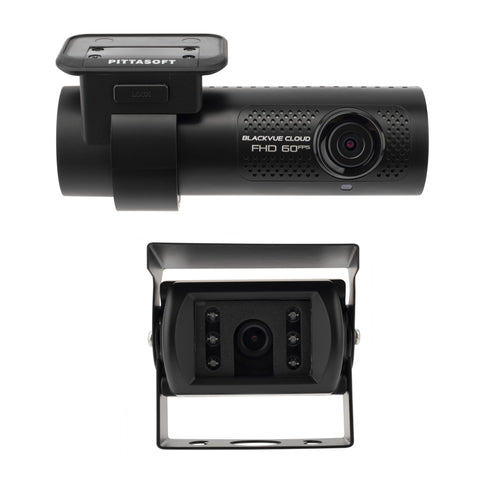

BlackVue DR750X-2CH Plus TRUCK
The new DR750X-2CH Plus TRUCK is the next iteration of the unique and popular "truck" dash cam series from BlackVue. Apart from the upgraded Sony STARVIS™ IMX327 image sensor on the front camera unit taking the picture quality and saturation to the next level, the new model comes with all the BlackVue "must-have" features including the outside-mounted waterproof rear camera, GPS logging, direct Wi-Fi connection for pairing with the free BlackVue Apps on your smartphone, audio and loop-recording - all in a premium quality, discreet and compact design.
The signature feature of the BlackVue dash cams, the remote access via BlackVue Cloud now is easier to use than before with an optional BlackVue CM100 LTE Module (not included), giving this dash cam the ability to stay connected to the BlackVue Cloud anytime, anywhere using just a SIM card with a data plan.
For utilizing Parking Recording, the DR750X-2CH Plus TRUCK can be hardwired directly to the vehicle's electrical system via the included in the package BlackVue 3-pin Hardwire Cable. Alternatively, it can also be powered by a Battery Pack for the ultimate parking recording protection. Both the Buffered Recording with Motion and Impact Detection and Time Lapse Recording are supported by this model.
- Built on the STARVIS™ IMX327, the latest and greatest image sensor from Sony for outstanding light sensitivity and excellent details.
- The powerful hardwire with the HiSilicon Hi3559 CPU allows for 25 Megabits front and 10 Megabits rear video bitrate as well as Enhanced Night Vision feature for better video quality.
- The external waterproof rear cam with embedded IR lights and the 15-metre coaxial cable is ideal for most large vehicles.
- In the Sports Mode, the DR750X can record at 60 FPS on the front cam, noticeably reducing blur on license plates.
- The built-in GPS receiver logs your vehicle’s location, speed and current time so you can later visualize its position on the map.
- With the built-in low-voltage protection, this model can be hardwired using the included 3-pin Hardwire Cable to get Parking Recording coverage for as long as your vehicle's battery has some extra charge.
- All BlackVue Parking Recordings Add-ons are still supported by the DR750X-2CH Plus! Should you opt for the Power Magic Pro or a Battery Pack for ultimate parking recording coverage, it is compatible with them all.
- Direct Wi-Fi connection to the dash cam (via built-in Wi-Fi module) allows accessing the camera's footage at blazing speed. The direct Wi-Fi connection is password-protected, does not consume any mobile data and is accessible within a 10-15 metre range from the camera.
- BlackVue Cloud is even more accessible with the DR750X-2CH Plus by plugging in the optional BlackVue LTE Module, or by pairing the camera to an existing Wi-Fi hotspot signal in (or near) the vehicle.
- Audio recording (on by default, yet can be turned off) adds more context to your footage.
- Based on supercapacitors, with the max operating temperature of 80°C and high temperature cut off this camera can work well in New Zealand summer.
- Discreet and stealthy design.
Specs and Manual
|Model||DR750X-2CH Plus TRUCK|
|Product Dimensions||Front: Width 118.5 mm / Height 36 mm / 105 g
Rear: Width 70 mm / Height 44.4 mm / 175 g
|Image Sensor||Front: STARVIS™ IMX327 Sensor (Approx. 2.1 M Pixel)
Rear: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
|Viewing Angle||Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 116°, Horizontal 97°, Vertical 51°
|Resolution and Frame Rate||Front: FullHD (1920x1080) @ 60 FPS Rear: FullHD (1920x1080) @ 30 FPS|
|Image Quality Modes||Highest (Extreme), Highest, High, Normal|
|Memory Card Support||MicroSD Class 10 U-1 or faster, up to 256GB.
BlackVue 32GB card included.
|Video Compression||MP4, H.264 (AVC)|
|Recording Modes||– Normal
– Event (Impact Detection / Speed Limit / Manual)
– Parking Mode (Motion+Impact Detection, Timelapse)
|Parking Mode||Supported (see Power Management Devices)|
|Event File Overwrite Protection||Supported (up to 50)|
|BlackVue Cloud||Supported (requires LTE Module or Wi-Fi connection)|
|Wi-Fi||Built-in (802.11 b.g.n)|
|GPS||Built-in (Dual Band: GPS, GLONASS)|
|LTE||External LTE Module (optional)|
|Speaker, Voice Guidance||Built-in|
|Sensor||3-Axis Acceleration Sensor|
|Backup Power||Built-in supercapacitor|
|Input Power||DC 12V-24V (DC Plug (⌀ 3.5 x ⌀ 1.1))|
|Power Consumption||Normal Mode (Wi-Fi On / GPS On) : 390 mAh
Normal Mode (Wi-Fi Off / GPS On) : 340 mAh
Parking Mode (Wi-Fi On / GPS Off) : 350 mAh
Parking Mode (Wi-Fi Off / GPS Off) : 300 mAh
* Actual power consumption varies depending on the environment.
|Operation Temperature||-20 °C to 80 °C (-4 °F to 176 °F)|
|Storage Temperature||-20 °C to 80 °C (-4 °F to 176 °F )|
|Overheating Cut-Off||Approx. 80 °C (176 °F)|
|Certifications||Front: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE
Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
* Windows 7 or higher, Mac Yosemite OS X or higher
|Smartphone App||BlackVue App
* Android 5.0 or higher, iOS 9.0 or higher
|Other||– Seamless Pairing with your smartphone via BlackVue App
– Mobile Hotspot Function
- BlackVue Tamper-Proof Case for protecting your dash cam from tampering.
- BlackVue CM100 LTE Module for remote access via BlackVue Cloud.
- Extra BlackVue Adhesive Pads for mounting your camera.
- Other BlackVue Accessories.
The DR750X-2CH Plus TURCK comes with the 32GB MicroSD memory card out of the box which is capable of storing around 2 hours worth of footage (on the highest video quality settings). If you'd like to keep more footage, you can add a more capacious option in the drop-down menu above. Each memory card option in the menu is marked with its price and estimated recording time.
The DR750X Plus TRUCK does a great job producing high-quality videos even in the most challenging environments (please don't forget to set the YouTube video quality to the highest).
Please find the video review of the BlackVue DR750S TRUCK camera below. While this video features the previous generation of the camera (DR750S rather than the DR750X Plus), most information is applicable to the latest model.
The installation process for the DR750X Plus TRUCK for the most part is identical to the other BlackVue X Series dash cams such as the D900X-2CH except the rear camera is mounted outside of the vehicle. The video below is a walkthrough of a very basic BlackVue dash cam installation (if you'd like to hardwire the camera, this video will also come in handy).
