HK4 Hardwiring Cable

  • $2500 $25.00


About

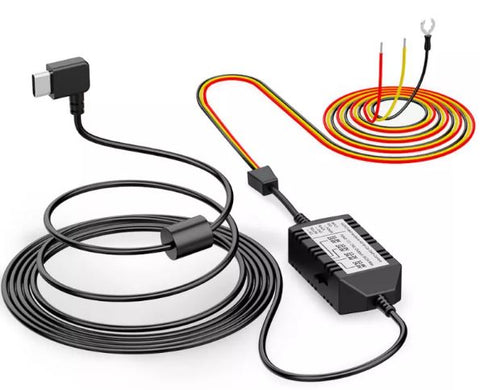

This Viofo 3-pin Hardwire Cable is designed for the latest generation of Viofo dash cams and makes it easy to hardwire your unit to the electrical system of your vehicle. This cable uses a simple 3-wire harness to tie into your vehicle's electrical system: constant power, switched power and ground.

Despite a little more advanced installation, hardwiring has a number of advantages to it, the most important of which is support for Parking Recording with Low-Voltage Protection. The control block will automatically power off your dash cam when your vehicle's battery voltage is detected to be too low thus preventing the battery from dying. The low voltage cutoff threshold is adjustable in 4 increments from 11.8 to 12.4V DC (12V systems) or 23.6 to 24.8V DC (24V systems). If you, however, want to use your dash cam only for driving and not for parking recording, please consider purchasing the Viofo 2-pin Hardwire Cable instead.

Another handy advantage of this accessory is clean fitting. Hardwiring to your car's fuse box frees up your cigarette lighter power outlet for another device such as your cell phone or USB charger.

With ACC detection, the dash cam will switch to Parking Recording automatically if the vehicle engine is turned off and then switch into normal recording when the engine is turned on again.

Compatibility

You can see which dash cam model supports the HK4 in the list below:
  • Viofo T130/2CH and 3CH
  • Viofo A119 MINI
  • Viofo A229 Series

You can also take advantage of Low-Voltage Protection by using this hardwire cable with some of the dash cam outside of this list. While we cannot guarantee 100% compatibility with other dash cam brands, most units with the MiniUSB or USB-C input can be powered using this cable.

Specs

  • Output Connector: USB-C (Right-Angled)
  • Input Voltage: 12V-24V
  • Output Voltage: 5V
  • Output Current: 2.0A
  • Working Temperature: from -40 to 80°C
  • Cable Length: 4 metres
  • Low Voltage Protection Threshold: 11.8V, 12.0V, 12.2V or 12.4V for 12V systems
  • Low Voltage Protection Threshold: 23.6V, 24.0V, 24.4V or 24.8V for 24V systems

Installation Using Fuse Tap Adapters

Despite this hardwire cable is relatively easy to wire up, it is recommended to be installed by a car electrician or a qualified installer. If you reside in Auckland, please consider our Auckland-based mobile dash cam installation service to get your dash cam neatly fitted and hardwired for you.

If you're willing and qualified to install the accessory yourself, the easiest way to pull this off is by plugging directly into your car's fuse box using a set of Add-A-Circuit Fuse Tap Adapters. You can also add these adapters using the drop-down menu on top of this listing.

Installation Video Guides

The videos in this YouTube playlist may give you some information about the Viofo 3-pin Hardwire Cable installation.
