About

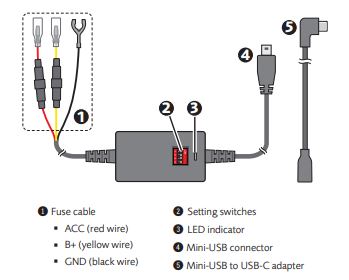

The SMARTBOX IV (4) power hard wiring kit connects directly to your car to provide continuous power to support the MiVue™ Dash Cam parking mode feature after the engine has been turned off. It prevents your car battery from being completely drained of power when not in use and has an auto shut off feature based on a preset time and when your car battery voltage drops below a certain rating.

It comes with a USB-C power adapter to suit selected MiVue™ Dash Cams.

Compatibility

 You can see which dash cam model is supported by the Smartbox IV in the list below:

• AUTO220 GPS

• AUTO500 DUAL

• AUTO570 DUAL

• MiVue ALTA

• MiVue ALTA DC

• MiVue ALTA WORKMATE XDC

• MiVue PRO 4K

• MiVue PRO 4K DC

• MiVue True 4K PRO Surround

• MiVue 1100 Sensor XL Dual Camera

• MiVue 1100 Sensor XL Premium Kit

• MiVue 1200 Sensor XL Dual Camera

• MiVue 150 SAFETY

• MiVue 170 Safety

• MiVue 270 Safety

• MiVue 830 Dual Camera

• MiVue 870 Safety

• MiVue 920 Dual Camera

• MiVue 930 Dual Camera

Specs

• Input Voltage: 12V-24V
• Output Voltage: 5V
• Output Current: 2.0A
• Plug Type: Mini USB + Right Angled USB-C
• Low Voltage Protection Threshold: 11.4V, 11.7V, 12.0V, 12.3V
• Low Voltage Protection Threshold: 24.0V, 24.4V, 24.8V, 25.2V

Installation Using Fuse Tap Adapters

Despite the hardwire cable being relatively easy to wire up, it is recommended to be installed by a car electrician or a qualified installer. If you reside in Auckland, please consider our Auckland-based mobile dash cam installation service to get your dash cam neatly fitted and hardwired for you.

If you're willing and qualified to install the accessory yourself, the easiest way to pull this off is by plugging directly into your car's fuse box using a set of Add-A-Circuit Fuse Tap Adapters. You can also add these adapters using the drop-down menu on top of this listing.
